Our Warehouse:

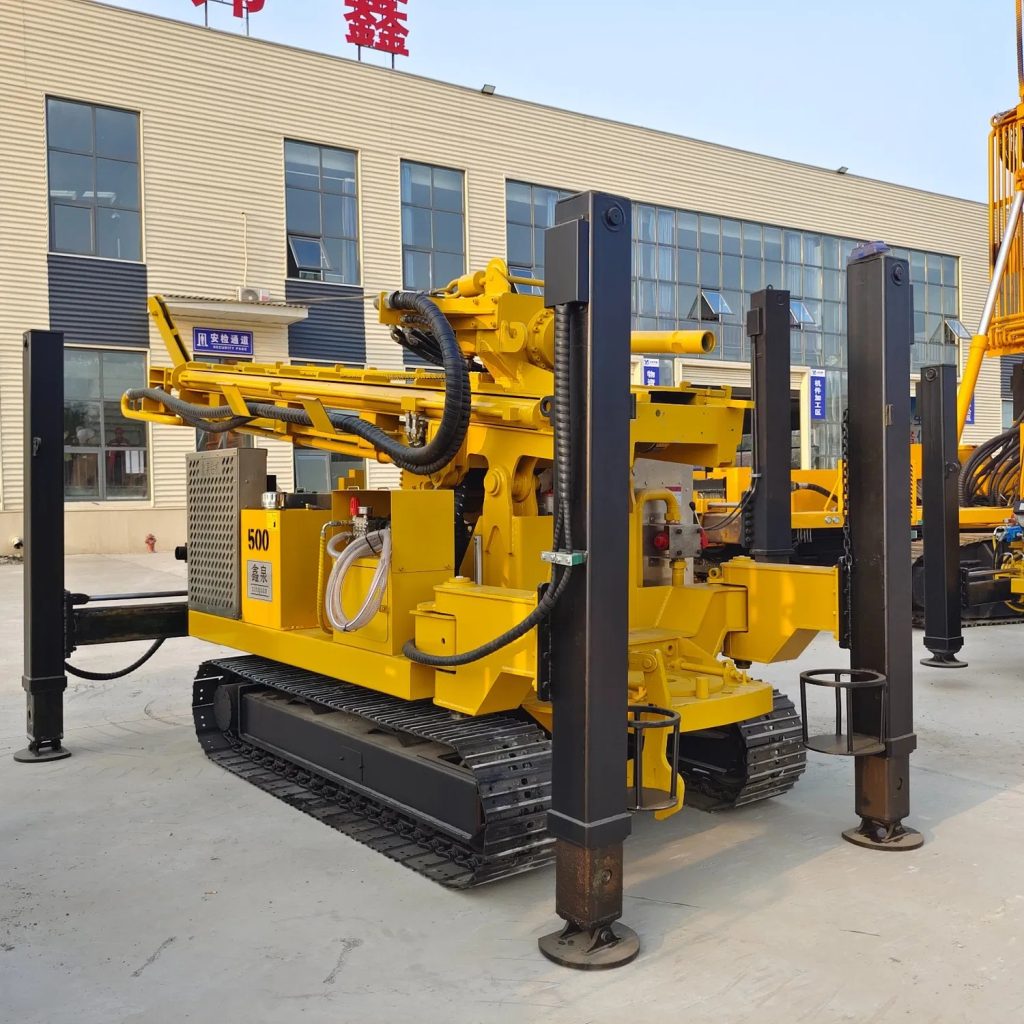

BANGXIN water well drilling rig adopt multi-function full hydraulic control, top power head drive rotary, high drilling efficiency. The overall layout reduces the overall dimensions to meet the requirements of well drilling and culvert transportation. The main engine adopts crawler self-walking, good mobility, convenient for urban and mountainous area complex terrain construction. The compound telescopic slide frame of the drilling machine greatly reduces the labor intensity and improves the construction efficiency and engineering quality.Widely used in agricultural irrigation Wells, domestic Wells, ground source air conditioning holes, testing Wells, and other projects.

Shandong Bangxin Masjinerie Toerusting Co., Bpk. is located in Lanshan District, Rizhao City, Shandong Province, with complete industrial supporting facilities and abundant technical talents. Our factory covers an area of 35,000 square meters. Selection of domestic top production equipment, testing equipment, advanced production lines. Our engineers constantly study market needs and consumer preferences to ensure that our products always stay ahead of the curve. Our factory has a complete set of production processes, each link is strictly controlled. In addition, we also have a professional after-sales service team to provide customers with timely and thoughtful service.

waterput boor tuig

Technical Parameters Eenheid BX500S
Maksimum boordiepte m 500
Boor deursnee Mm 105 325
Recommended working air pressure MPa 1.2 3.5
Drill pipe length m 3 6
Aanbevole boorpyp deursnee Mm 89 102 114
Thrust force T 8
Lifting force T 20 25
Power head stroke m 6.8
Maximum rotary torque Nm 10000
Maximum rotation speed r/min 200
Winch lifting force T 1.5
High outrigger stroke m 1.5
Travel speed km/h 2.5
Climbing ability Gradiënt 21°
Machine weight T 9
Dimensions Mm 5700 – 4000×1800×2400
Adaptable conditions Los lae en rots
Drilling methods Hidrouliese roterende, DTH-hamer of modderboor
